LMC-STC1D16/SSC1D16 is a 16 characters * 1 line, 1/16 duty 1/4 bias LCD display screen, TN/STN display mode, LED/EL backlight, 5 x 8 dot fonts, controller is NT3881 or equivalent, working voltage is DC+5V, LED backlight voltage is DC+5V, EL backlight voltage is AC90~100V(400~700HZ), EL inverter is I001A(I001B)
The LMC‑STC1D16/SSC1D16 is a 16‑character, single‑line LCD module with a TN/STN display mode and LED/EL backlight. It uses an NT3881 controller and supports 5×8 dot characters with a cursor.

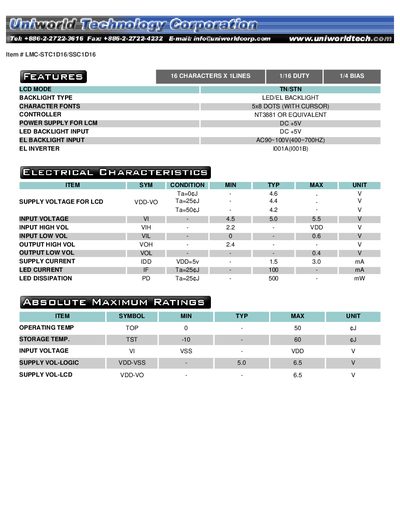

The datasheet provides detailed electrical specifications, absolute maximum ratings, a block diagram, and a full pin‑out table for interfacing the module to a host controller.
| Display characters | 16 characters x 1 line |
|---|---|
| Duty cycle | 1/16 |
| Bias | 1/4 |
| LCD mode | TN/STN |
| Backlight type | LED/EL |
| Character font | 5×8 dots (with cursor) |
| Controller | NT3881 or equivalent |
| Power supply for LCM | DC +5 V |
| LED backlight input | DC +5 V |
| EL backlight input | AC 90‑100 V (400‑700 Hz) |
| Input voltage (typical) | 5.0 V |
| Input high voltage (VIH) | 2.2 V |
| Input low voltage (VIL) | 0.6 V |
| Output high voltage (VOH) | 2.4 V |
| Supply current (IDD) | 3.0 mA |
| LED current | 100 mA |
| LED dissipation | 500 mW |
| Operating temperature | 0 °C to 50 °C |
| Storage temperature | 10 °C to 60 °C |
The module displays 16 characters on a single line.
The LCD module needs a DC +5 V supply for the LCM and LED backlight, and an AC 90‑100 V supply for the EL backlight.
The module operates from 0 °C up to 50 °C.
