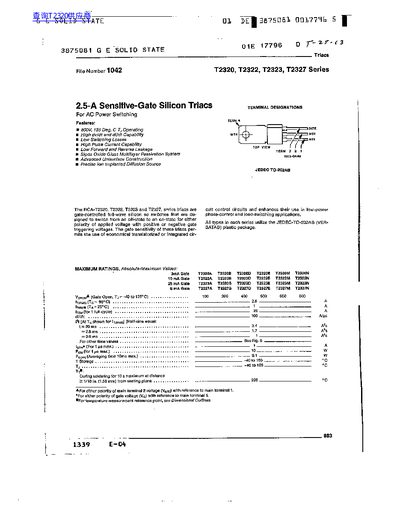

The T2320, T2322, T2323 and T2327 series are 2.5‑A sensitive‑gate silicon triacs designed for AC power switching. They feature an 800 V rating, high dv/dt and di/dt capability, low switching losses, and a silicon‑oxide glass multilayer passivation system.
Electrical characteristics include a 10 mA gate trigger current, on‑state voltage drop around 12 V, and a dv/dt capability of 1.33 A/ms. The devices are packaged in the JEDEC‑TO‑202AB plastic package and operate up to 125 °C, making them suitable for low‑power phase‑control and load‑switching applications.
| Rated Voltage | 800 V |
|---|---|
| Rated Current | 2.5 A |
| Gate Trigger Current | 10 mA |
| On‑State Voltage Drop | ≈12 V |
| dv/dt Capability | 1.33 A/ms |
| Operating Temperature Range | Up to 125 °C |
| Package | JEDEC‑TO‑202AB plastic |
The triacs are rated for 800 V.
A gate current of 10 mA is required.
They can operate up to 125 °C.
