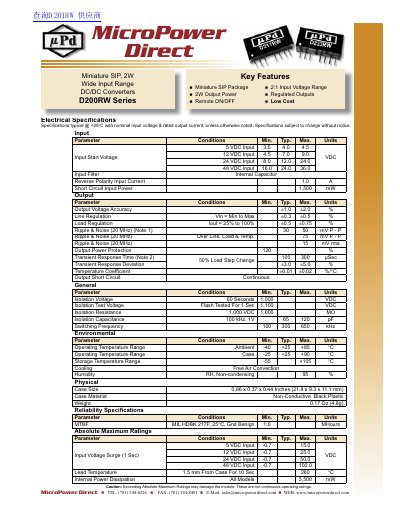

This document is the specification sheet of MicroPower Direct Miniature SIP, 2W Wide Input Range DC/DC Converters D200RW Series product.
The D200RW series are 2 W miniature SIP‑package DC/DC converters offering a 2:1 input voltage range, regulated outputs, remote ON/OFF control and low‑cost electrical specifications. They support input voltages from 3.5 VDC up to 48 VDC and provide typical efficiencies above 70 %.
The modules measure 0.86 × 0.37 × 0.44 inches (21.8 × 9.3 × 11.1 mm) and are housed in a non‑conductive black plastic case. Electrical performance includes ±1 % output voltage accuracy, line and load regulation within ±0.5 %, and ripple & noise under 50 mV p‑p. They are rated for ambient temperatures from –40 °C to +85 °C and include protection features such as overload, short‑circuit and transient response safeguards.
| Input Voltage Range | 3.5 VDC – 48 VDC |
|---|---|
| Output Power | 2 W |
| Output Voltage Accuracy | ±1 % typ |
| Switching Frequency | 100 kHz – 300 kHz |
| Operating Temperature Range (Ambient) | -40 °C to +85 °C |
The series accepts input voltages from 3.5 VDC up to 48 VDC.
The case measures 0.86 × 0.37 × 0.44 inches (21.8 × 9.3 × 11.1 mm).
