This product is a 1550nm 2.5Gbps laser diode module with a multi-quantum-well structure. It does not require cooling and can operate at temperatures of -40~+85ºC.

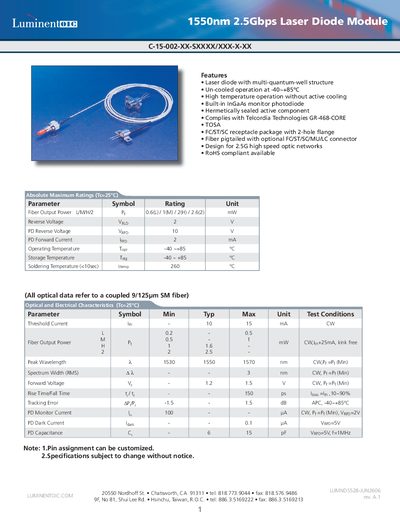

The Luminent C-15-002-XX-SXXXX/XXX-X-XX is a 1550 nm, 2.5 Gbps laser diode module designed for high‑speed optical networks. It features a multi‑quantum‑well structure, un‑cooled operation from –40 °C to +85 °C, a built‑in InGaAs monitor photodiode, and hermetically sealed construction.
The datasheet lists absolute maximum ratings, optical and electrical characteristics, pin assignments, packaging dimensions, and ordering codes. It also includes handling precautions for electrostatic discharge and laser safety warnings, as well as legal and warranty notices.
| Fiber Output Power (max) | 2.6 mW |
|---|---|
| Reverse Voltage | 2 V |
| PD Reverse Voltage | 10 V |
| PD Forward Current | 2 mA |
| Operating Temperature | -40 °C to +85 °C |
| Threshold Current (typ) | 10 mA |
| Peak Wavelength | 1550 nm |
| Forward Voltage (typ) | 1.5 V |
| Rise/Fall Time (max) | 150 ps |
The module operates from –40 °C to +85 °C.
