TE100R-TE108R are TE's glass passivated junction fast switching rectifiers, rated voltage is 50 to 800 volts, rated current is 1 ampere.

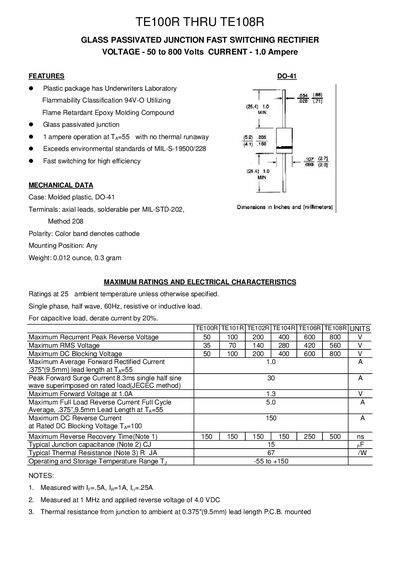

The document provides specifications for the TE100R through TE108R series of glass passivated junction fast switching rectifiers. It lists features such as UL‑94V‑0 flame‑retardant epoxy molding, fast switching for high efficiency, and compliance with MIL‑S‑19500/228 standards.
Mechanical data, maximum electrical ratings, and characteristic curves are included, covering voltage and current limits, reverse recovery time, junction capacitance, thermal resistance, and operating temperature range. The sheet also contains notes on measurement conditions and test methods.
| Maximum Average Forward Rectified Current | 1.0 A |
|---|---|
| Package | Molded plastic, DO‑41 |
| Typical Junction Capacitance | 15 pF |
| Typical Thermal Resistance (RJA) | 67 °C/W |
| Operating Temperature Range | -55 °C to +150 °C |
The maximum average forward rectified current is 1.0 A.
Typical junction capacitance is 15 pF.
