MWA-204 Wireless LAN Broadband Router User Manual

This document is the user manual for MWA-204 wireless LAN broadband router, which introduces the features and usage of the product

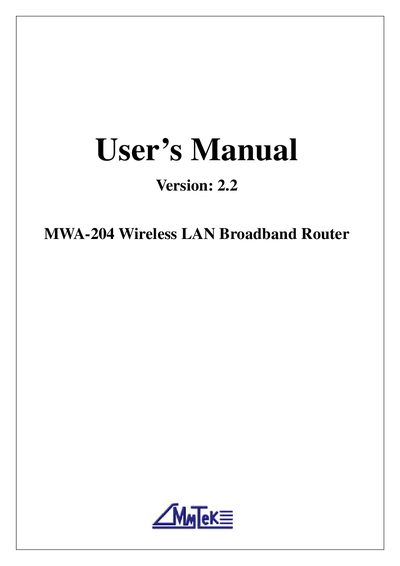

MWA-204 Wireless LAN Broadband Router User Manual - cover page
Brand
MWA-204
Category
Router
Document type
User Manual
Language
English
Pages
79
File format
PDF
File size
2.9 MB
Published
08 May, 2012
Updated
30 September, 2023
MD5 checksum
47B4395974BDAFE1E04C35A04995F74A
PDF
MWA-204 Wireless LAN Broadband Router User Manual PDF

About this manual

This manual covers the installation and configuration of the MWA-204 wireless LAN broadband router. It includes hardware installation steps, software installation procedures, and detailed configuration of WAN, LAN, and WLAN interfaces.

The document also contains a comprehensive FAQ section that answers common questions about wireless networking, security settings, and troubleshooting interference issues.

What's inside

  • Introduction
  • Package Contents
  • Product Specifications
  • Product Features
  • Panel Description
  • Installation
  • Hardware Installation
  • Software Installation
  • Software Configuration
  • Frequently Asked Questions

Frequently asked questions

How do I configure the WAN interface?

Open the WAN Interface Setup page, select Fixed IP, then enter the IP address “192.168.2.254”, subnet mask “255.255.255.0”, and default gateway “192.168.2.10”. Press the Apply Changes button to confirm.

How do I configure the LAN interface?

Open the LAN Interface Setup page, enter the IP address “192.168.1.254”, subnet mask “255.255.255.0”, enable the DHCP server, and set the DHCP client range to “192.168.1.100” – “192.168.1.200”. Press the Apply Changes button to confirm.
