IQXO-35, -36 Industrial Oscillator, 8-pin DIL compatible resistance welded enclosure, hermetically sealed with glass to metal seals and high environmental performance. Optional ±5ppm, ±10ppm, ±25ppm frequency tolerance, standard frequency stabilities ±25ppm, ±50ppm, ±100ppm (over operating temperature range)

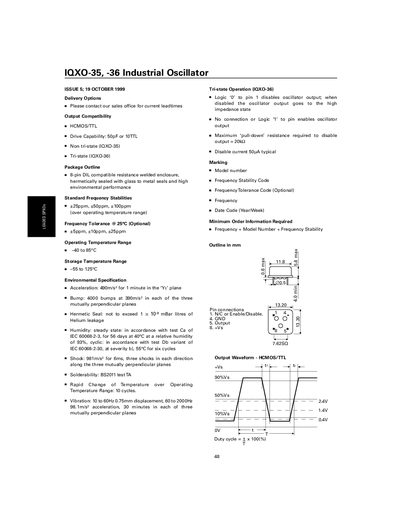

The handbook provides detailed specifications for the 10X0-35 (non‑tri‑state) and 10X0-36 (tri‑state) industrial oscillators. It covers output compatibility, environmental limits, frequency stability options, and ordering requirements.
Electrical characteristics, test circuits for HCMOS and TTL, and mechanical dimensions are listed, along with notes on pin functions and tri‑state operation. The document also includes environmental test data such as shock, vibration, and humidity performance.
| Output Compatibility | HCMOS/TTL |
|---|---|
| Drive Capability | 50pF or 10TTL |
| Operating Temperature Range | -40 to 85 °C |
| Storage Temperature Range | -56 to 125 °C |
| Frequency Stability Options | +25 ppm, +50 ppm, +100 ppm |
| Frequency Tolerance @ 25 °C (Optional) | +5 ppm, +10 ppm, +25 ppm |
| Acceleration (Environmental Test) | 490 m/s² for 1 min |
IOXO‑35 is a non‑tri‑state oscillator, while IOXO‑36 provides tri‑state operation.
Pin 1 is not connected on non‑tri‑state models.
