Modular printing system offering the benefits of desktop, portable or in vehicle uses. Choice of impact or high speed thermal printing technologies, standard RS232C interface.
The Ap800 Series Modular Printing System offers a flexible solution for desktop, portable, or in‑vehicle use. It supports both impact dot‑matrix and high‑speed thermal printing technologies with standard RS‑232C interface and advanced software control.

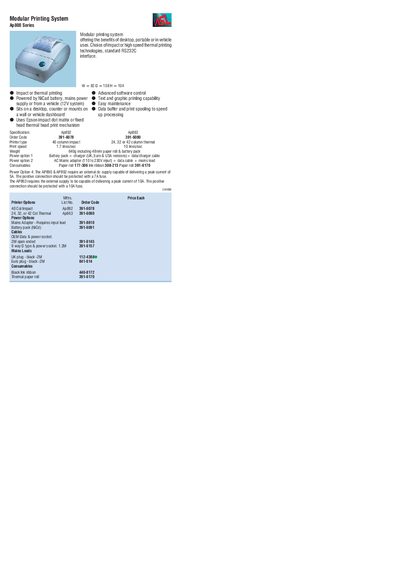

The leaflet lists printer types, print speeds, weight, power options (battery pack, AC mains adapter, vehicle 12 V supply) and consumables such as paper rolls and ink ribbons, along with order codes for each configuration.
| Printer type | 40 column impact, 24/32/42 column thermal |
|---|---|
| Print speed | 4.7 lines/sec (impact), 10 lines/sec (thermal) |
| Weight | 640 g including 48 mm paper roll & battery pack |
| Power option 1 | Battery pack + charger (UK, Euro & USA) with data/charger cable |
| Power option 2 | AC mains adapter (110‑230 V) with data cable and mains lead |
The printer uses paper rolls (e.g., part 177‑306) and ink ribbons (e.g., part 308‑213) as consumables.
