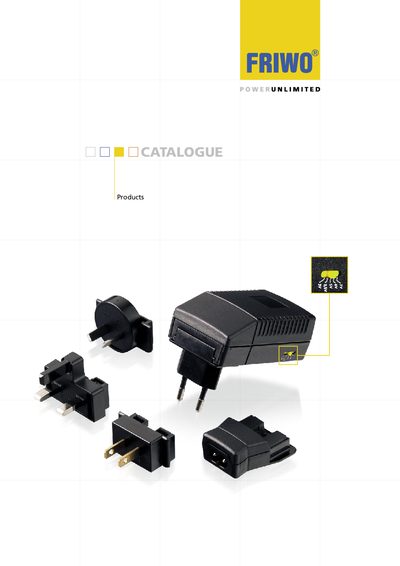

The document introduces the features of FRIWO brand power supplies and chargers. There are over 930 types of products with a sales volume of more than 930 million.
The Friwo MPP 15 Medical is a compact switchmode power supply designed for medical equipment such as blood analyzers, patient monitors, measuring instruments and laboratory devices. It accepts a wide input voltage range (100‑240 V AC) and provides multiple regulated output voltages (5 V, 6 V, 7.5 V, 12 V, 15 V) with low ripple and high precision.
The unit meets stringent safety and EMC standards (EN 55011, EN 55014, EN 55022/B, FCC Part 15, IEC 60601‑1, UL 2601, VDE, CE) and offers features like low standby power (<0.5 W), low leakage current (<10 pA), and continuous short‑circuit protection. It weighs approximately 160 g and includes interchangeable mains plug adapters for global use.
| Input voltage range | 100 to 240 V AC |
|---|---|
| Frequency | 50 to 60 Hz |
| Typical efficiency at full load | 80 % typ. |
| Operating temperature range | 0 °C to 40 °C at maximum load |
| Storage temperature range | -10 °C to 70 °C |
| Humidity (non‑condensing) | 5 % to 95 % |
| Low leakage current | < 10 pA |
| Standby power consumption | < 0.5 W |
It accepts a universal input voltage from 100 V to 240 V AC.
The typical efficiency is about 80 % at full load.
It complies with EN 55011, EN 55014, EN 55022/B, FCC Part 15, EN 61000‑3‑2, EN 61000‑4‑2, EN 61000‑4‑3, EN 61000‑4‑4, EN 61000‑4‑5, EN 61000‑4‑6, EN 61000‑4‑11, IEC 60601‑1, UL 2601, VDE and CE.
The standby power consumption is less than 0.5 W.
