This document provides information about PAN OVERSEAS' multilayer ceramic capacitor products, including specifications and dimensions.

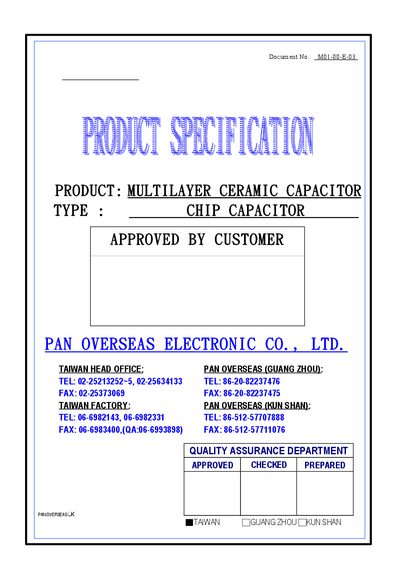

This document provides the full specification for Pan Overseas multilayer ceramic chip capacitors, covering construction codes, rated voltages, dimensions, temperature characteristics, tolerances and packaging options. It also details the standard test conditions, performance criteria, storage guidelines and handling procedures.
The sheet includes recommended soldering profiles for lead‑free terminations, cleaning instructions, and precautions for PCB mounting, vibration, humidity and long‑term storage to ensure reliable operation in electronic assemblies.
| Rated Voltage (M3 code) | 3000 V |
|---|---|
| 0805 Package Size | 2.0 mm × 0.5 mm × 0.8 mm |
| Temperature Coefficient (NPO) | -55 °C ~ +125 °C, 0 ± 30 ppm/°C |
| Temperature Coefficient (X7R) | -55 °C ~ +125 °C, ±15 % |
Store the capacitors within six months at 15 °C ~ 35 °C and up to 70 % relative humidity; if stored longer, verify solderability before use.
X7R capacitors have a temperature coefficient of –55 °C ~ +125 °C with a capacitance change of ±15 %.
