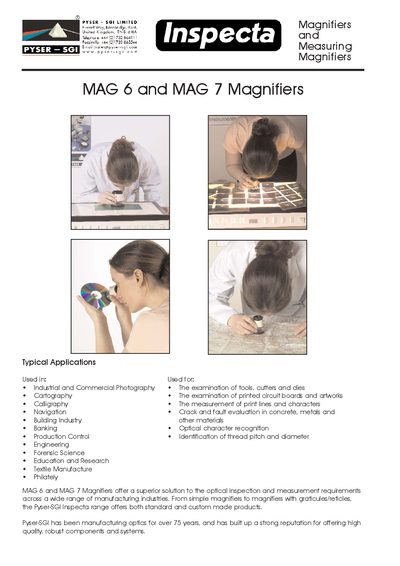

MAG 6 and MAG 7 Measuring Magnifiers offer a superior solution to the optical inspection and measurement requirements across a wide range of manufacturing industries. From simple magnifiers to magnifiers with graticules/reticles, the Pyser-SGI Inspecta range offers both standard and custom made products.
The MAG 6 and MAG 7 magnifiers are designed for a wide range of industrial and commercial applications such as photography, cartography, forensic science, and quality control. They feature multi‑element glass lenses, rubber focusing grips, and robust metal bodies with clear acrylic sleeves, providing a flat field and ample illumination.
Both models are available in measuring (with graticule) and inspection (without graticule) versions, each supplied in a leatherette case. Detailed ordering information, including catalog references and optional graticules/reticles, is provided for each variant.
| Magnification (MAG 6) | x8 |
|---|---|
| Height (MAG 6) | 65 mm |
| Field of View (MAG 6) | 25 mm |
| Overall Diameter (MAG 6) | 40 mm |
| Magnification (MAG 7) | x4 |
| Height (MAG 7) | 60 mm |
| Field of View (MAG 7) | 85 mm |
| Overall Diameter (MAG 7) | 73 mm |
The MAG 6 Measuring Magnifier provides 8× magnification.
The MAG 7 Measuring Magnifier has a field of view of 85 mm.
Yes, interchangeable graticules can be fitted in the base of the MAG 6 Measuring Magnifier.
Each magnifier is supplied with a robust leatherette case.
