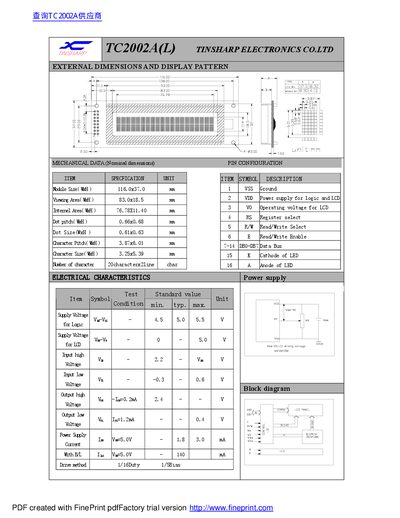

TC2002A(L) is a 16*2 dot matrix LED display produced by TINSHARP ELECTRONICS CO.LTD, with a size of 116.0x37.0 mm.
The TC2002A(L) is a compact LCD module with a total size of 116.0 × 37.0 mm and a viewing area of 83.0 × 18.5 mm. It features a dot pitch of 0.66 × 0.68 mm and a dot size of 0.61 × 0.63 mm, allowing 20 characters per line on two lines.
Electrical specifications include a supply voltage range of 4.5 – 5.5 V for VSS and a fixed 5.0 V for VDD. Input high voltage is 2.2 V, input low voltage ranges from –0.3 V to 0.6 V, and the LED backlight draws 140 mA.
| Viewing Area (W × H) | 83.0 × 18.5 mm |
|---|---|
| Dot Pitch (W × H) | 0.66 × 0.68 mm |
| Dot Size (W × H) | 0.61 × 0.63 mm |
| Number of Characters | 20 characters × 2 lines |
| Supply Voltage (VSS) | 4.5 – 5.5 V |
| Supply Voltage (VDD) | 5.0 V |
| Input High Voltage | 2.2 V |
| Input Low Voltage | -0.3 – 0.6 V |
It can display 20 characters per line on two lines.
The VSS supply voltage ranges from 4.5 V to 5.5 V, while VDD is 5.0 V.
