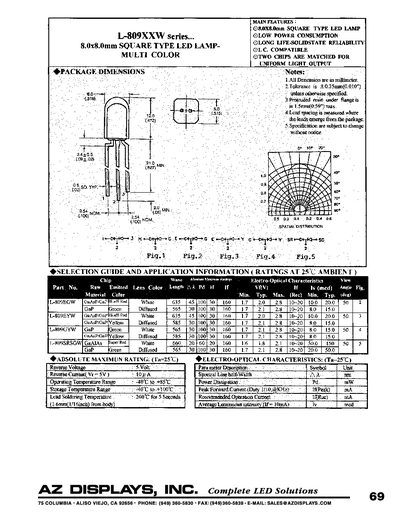

The L-809XXW series offers 8.0 × 8.0 mm square type LED lamps with low power consumption, uniform light output, and multi‑color options such as red, green, yellow, and white. The series includes several variants (e.g., L-809EGW, L-809EYW) each optimized for specific wavelengths.
Package dimensions are given in millimeters with tight tolerances, and the datasheet lists electrical ratings such as reverse voltage, reverse current, and peak forward current, as well as operating temperature ranges from –40 °C to +85 °C. Contact information for AZ Displays is provided for further inquiries.
| Package size | 8.0 × 8.0 mm square |
|---|---|
| Power consumption | Low |
| Uniform light output | Yes |
| Operating temperature range | -40 °C to +85 °C |
| Reverse voltage | 2 V |
| Reverse current (Vr=5V) | Specified in datasheet |
Each LED is an 8.0 × 8.0 mm square type package.
The LEDs operate from –40 °C up to +85 °C.
