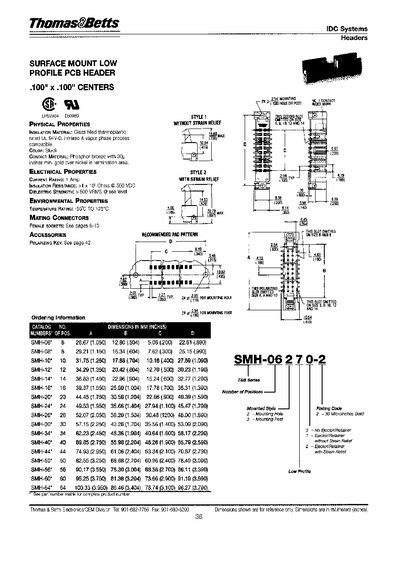

The IDC Systems series from Thomas & Betts provides surface‑mount low‑profile PCB headers with 0.100" pitch. They are designed for high‑density applications and feature glass‑filled thermoplastic insulation and phosphor‑bronze contacts with gold over nickel plating.
The data sheet lists electrical ratings such as 1 A current, >1 × 10⁰ Ω insulation resistance at 500 VDC, and >500 VRMS dielectric strength, as well as an operating temperature range of –55 °C to 125 °C. Detailed dimensions, mounting hole sizes, and part numbers (SMH‑06, SMH‑08, … SMH‑64) are provided for ordering.
| Insulation Material | Glass filled thermoplastic |
|---|---|
| Current Rating | 1 Amp |
| Insulation Resistance | >1 × 10° Ω @ 500 VDC |
| Dielectric Strength | >500 VRMS @ sea level |
| Temperature Rating | -55 °C to 125 °C |
The current rating is 1 Amp.
It operates from –55 °C to 125 °C.
The insulation material is glass‑filled thermoplastic.
