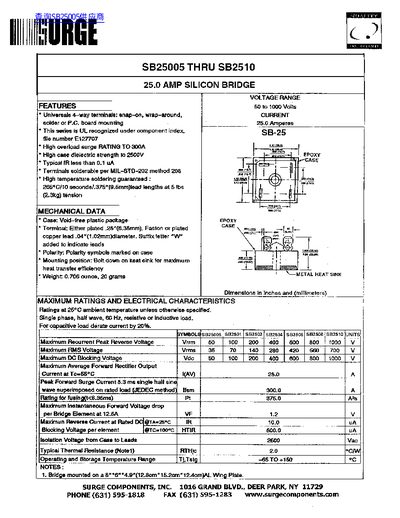

The SB25005‑SB2510 series from Surge Components provides a 25 A silicon bridge rectifier with four‑way terminals that can be snap‑on, wrap‑around, soldered, or mounted on a printed‑circuit board. The devices are UL‑recognized, feature high overload surge ratings up to 300 A, and have a case dielectric strength of up to 2500 V.
Mechanical data include a void‑free epoxy package, plated faston terminals, and a metal heat sink weighing 0.706 oz (20 g). Electrical characteristics are rated at 25 °C ambient, with typical reverse leakage below 0.1 µA, thermal resistance of 2.0 °C·W, and an operating temperature range from –65 °C to +150 °C.
| Current rating | 25.0 A |
|---|---|
| Isolation Voltage (case to leads) | 2500 Vac |
| Typical reverse leakage current | < 0.1 µA |
| Thermal resistance | 2.0 °C·W |
| Operating temperature range | –65 °C to +150 °C |
| Weight | 0.706 oz (20 g) |
The device is rated for a continuous current of 25.0 A.
The isolation voltage is 2500 Vac.
Typical reverse leakage current is less than 0.1 µA.
