Grayhill 78 series DIP switches have SPST, 2PST, 3PST, 4PST and other circuits. The switch length and tube diameter can be selected. The sealed base is standard. It has spring and ball contacts. A top seal is optional.
The Grayhill Series 78 slide switches are offered in single‑pole/single‑throw (SPST) up to four‑pole/single‑throw (4PST) configurations. They are available with raised or recessed slides, sealed bases, spring or ball contacts, and an optional top‑tape seal for solder‑heavy applications.

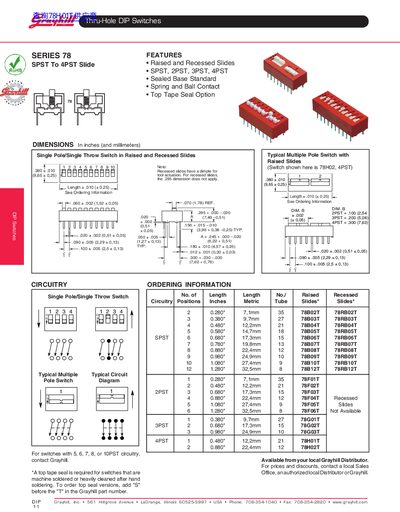

The sheet provides detailed dimensions for each slide length, circuitry ordering tables, and part‑number conventions. Ordering a top‑seal version requires adding an "S" before the "T" in the Grayhill part number. Distributors can supply the switches worldwide.
| Length (inches) | 0.280" (7.4 mm) |
|---|---|
| Length (inches) for 2PST | 0.380" (9.7 mm) |
| Length (inches) for 4PST | 0.880" (22.4 mm) |
| Slide options | Raised and recessed slides |
| Pole configurations | SPST, 2PST, 3PST, 4PST |
The switches are offered with raised slides or recessed slides that have a dimple for tool actuation.
Add an "S" before the "T" in the Grayhill part number to request a top‑tape seal.
The Series 78 line provides SPST, 2PST, 3PST and 4PST configurations.
They are available from local Grayhill distributors or authorized sales offices.
