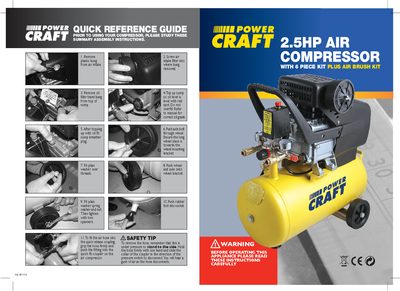

This document introduces a 2.5HP air compressor with a 6 piece kit and an air brush kit. The document includes precautions and a quick reference guide before use, as well as assembly and usage instructions.
The guide provides step‑by‑step assembly instructions, safety warnings, and operating procedures for the Craft PC270/24 air compressor. It includes details on connecting the hose, filling oil, and starting the unit safely.
Additional sections cover product specifications, parts list, troubleshooting, routine maintenance such as oil changes and tank drainage, and warranty information. The manual is intended for competent users and service personnel.
| Maximum working pressure | 8 bar / 115 psi |
|---|---|
| Pump air displacement | 9.5 CFM |
| Air receiver capacity | 24 L |
| Power supply voltage | 230 V / 50 Hz |
| Noise level | 97 dBA max |
| Dimensions (W×D×H) | 585 × 285 × 630 mm |
| Weight | 34 kg |
The air receiver should be drained weekly to remove condensate.
Use SAE 30 oil to fill the sump to the correct level.
The maximum working pressure is 8 bar (115 psi).
