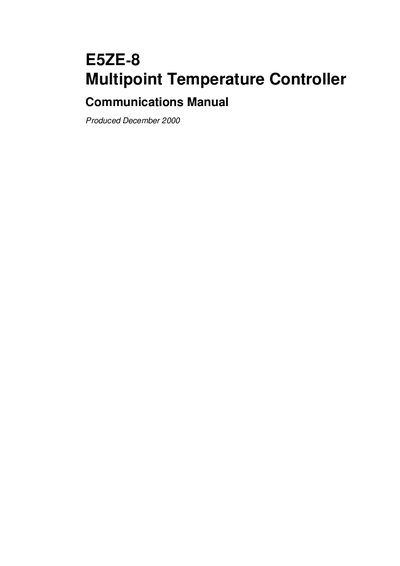

Omron E5ZE-8 Multipoint Temperature Controller Communications Manual

About this manual

This manual describes the communication features of the Omron E5ZE-8 Multipoint Temperature Controller. Part 1 covers DeviceNet (CompoBus/D) communications, including remote I/O, explicit messages, error handling, and programming examples. Part 2 details the RS‑232C serial interface, command syntax, and application‑specific functions such as heater burnout detection and fuzzy control.

Each section lists the available commands (e.g., WS for set‑point write, OS to start operation) and the required data formats, enabling users to integrate the controller into a DeviceNet network or a serial‑based system. Safety warnings and precautions are included throughout the document.

What's inside

• DeviceNet Communications Overview
• DeviceNet Communications Setup
• Remote I/O Communications
• DeviceNet Explicit Message Communications
• Communications Errors
• Communications Program Examples
• Serial Communications Control
• Serial Commands and Responses
• Basic Temperature Control Commands
• Application Specific Commands

Frequently asked questions

What communication protocols are supported by the E5ZE-8 controller?

The controller supports DeviceNet (CompoBus/D) and serial communications using an RS‑232C auxiliary setting jack.

Which command starts the controller operation via serial communication?

Use the OS command to start operation.

How do I write a temperature set point to the controller?

Send the WS command followed by the desired set‑point value.
