Powerpole® connectors provide cost-effective reliability, design flexibility and safety for your products' manufacture, installation and maintenance. Powerpoles are stackable and color-coded for easy customization into multipole blocks. The housings are modular and genderless. Powerpole® connectors provide 600 Volts continuous AC or DC operation. Wire sizes range from #2 to #8 AWG (33.6 to 8.4 mm²).
The PP120 Powerpole connector from Anderson Power Products is a genderless, modular, and color‑coded connector designed for reliable, stackable power distribution. It features a flat wiping contact system that reduces contact resistance and molded‑in dovetails that lock connectors into keyed assemblies.

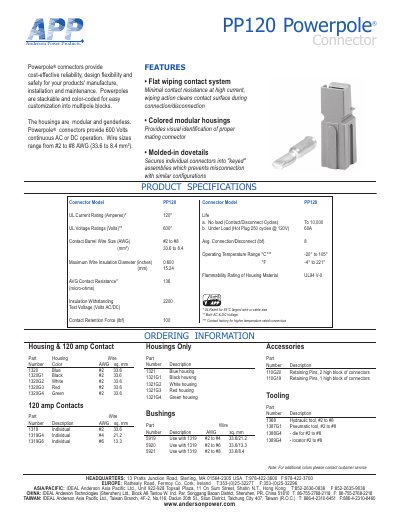

The document lists detailed product specifications, including UL ratings, wire size compatibility, temperature range, and mechanical data, as well as part numbers for housings, retaining pins, and tooling. Contact and mounting clamp ratings are presented in tables for various pole configurations.
| UL Current Rating (Amperes) | 120 |
|---|---|
| UL Voltage Rating (Volts) | 600 |
| Contact Barrel Wire Size (AWG) | #2 to #8 |
| Operating Temperature Range (°C) | -20 to 105 |
| Maximum Wire Insulation Diameter (inches) | 0.600 |
| Flammability Rating of Housing Material | UL94 V-0 |
| AVG Contact Resistance (µΩ) | 136 |
| Contact Retention Force (lbf) | 100 |
| No‑load Contact/Disconnect Cycles | Up to 10,000 |
The PP120 Powerpole connector is rated for 600 V continuous AC or DC operation.
It supports wire sizes from #2 to #8 AWG.
The connector is rated for up to 10,000 no‑load contact/disconnect cycles.
The connector operates from –20 °C to 105 °C.
