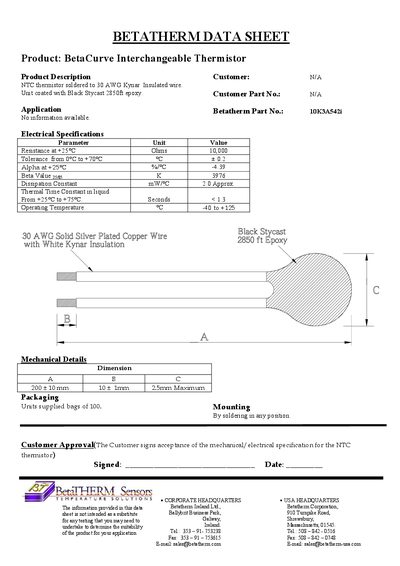

This data sheet provides details about the BetaCurve Interchangeable Thermistor, including product description, application, customer, customer part number, Betatherm part number, electrical specifications, mechanical details, packaging and mounting.
The BetaCurve Interchangeable Thermistor is an NTC thermistor supplied by Betatherm, featuring a 30 AWG Kynar insulated wire and a black Stycast 2850ft epoxy coating. It is intended for temperature‑sensing applications and can be mounted by soldering in any position.
The sheet provides key electrical parameters such as resistance at 25 °C, tolerance, alpha, beta value, and dissipation constant, as well as mechanical dimensions, packaging details (bags of 100 units), and a full resistance‑versus‑temperature chart for -40 °C to +125 °C.
| Resistance at 25 °C | 10,000 Ω |
|---|---|
| Tolerance (0 °C to 70 °C) | ±0.2 °C |
| Alpha at 25 °C | -4.39 %/°C |
| Beta Value (35/5 K) | 3976 K |
| Dissipation Constant | 2.0 mW/°C |
| Operating Temperature Range | -40 °C to +125 °C |
| Packaging Quantity | 100 units per bag |
It is 10,000 Ω at 25 °C.
The device operates from –40 °C up to +125 °C.
Each bag contains 100 units.
The dissipation constant is 2.0 mW per degree Celsius.
