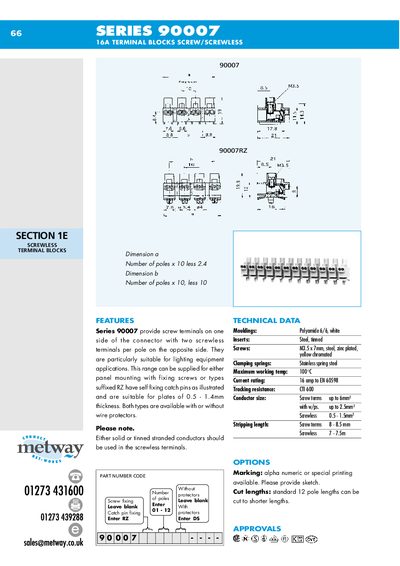

The product is 90007 series 16A terminal blocks, which can be used for lighting equipment applications. This range can be supplied for either panel mounting with fixing screws or types suffixed RZ have self fixing catch pins as illustrated and are suitable for plates of 0.5 - 1.4mm thickness. Both types are available with or without wire protectors.
Series 90007 terminal blocks provide screw terminals on one side and two screwless terminals per pole on the opposite side, making them ideal for lighting equipment applications. The range can be supplied for panel mounting with fixing screws, while the RZ‑type variants feature self‑fixing catch pins for plates 0.5‑1.4 mm thick and are available with or without wire protectors.
Technical data includes polyamide 6/6 mouldings, steel tinned inserts, M3.5 × 7 mm zinc‑plated screws, stainless spring steel clamping springs, a maximum working temperature of 100 °C, and a current rating of 16 A (EN 60598). Conductor sizes, stripping lengths, and optional markings or cut lengths are also specified.
| Mouldings | Polyamide 6/6, white |
|---|---|
| Inserts | Steel, tinned |
| Screws | M3.5 × 7 mm, steel, zinc plated, yellow chromated |
| Clamping springs | Stainless spring steel |
| Maximum working temperature | 100 °C |
| Current rating | 16 A (EN 60598) |
| Tracking resistance | I 600 |
| Stripping length | Screw terminals 8‑8.5 mm; screwless 7‑7.5 mm |
It provides screw terminals on one side of the connector and two screwless terminals per pole on the opposite side.
The terminal blocks are rated for 16 A according to EN 60598.
They can be panel‑mounted with fixing screws, or the RZ‑type variants use self‑fixing catch pins for plates 0.5‑1.4 mm thick.
Screwless terminals accept conductors from 0.5 mm to 1.5 mm in diameter.
