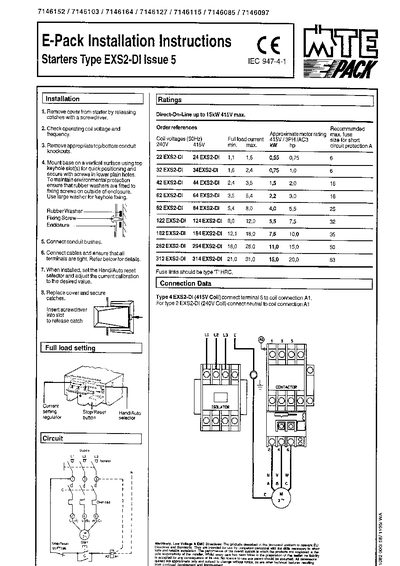

This guide explains how to safely install the E-Pack EXS2-DI starter. It starts with removing the starter cover by releasing the catches with a screwdriver, checking the operating voltage, and selecting the appropriate motor rating. The document then details mounting the starter on a vertical surface using the keyhole slots and securing it with screws and rubber washers.
After mounting, the guide describes connecting conduit bushes, wiring the terminals (including coil connections for 415 V or 240 V types), and adjusting the hand/auto reset selector and current calibration to the desired values. Safety and compliance notes for low‑voltage and EMC directives are also included.
| Coil voltage (type 4) | 415 V |
|---|---|
| Coil voltage (type 2) | 240 V |
When installed, set the Hand/Auto reset selector and adjust the current calibration to the desired value.
