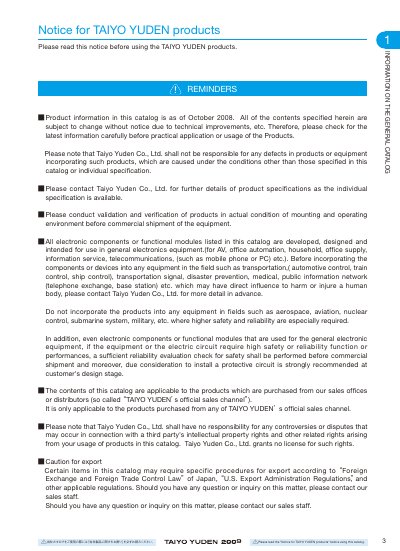

This document is a notice for TAIYO YUDEN products. It includes product information and usage notes
This document provides a notice for Taiyo Yuden products and general information about the BKP series multilayer ferrite chip beads, including usage warnings, export controls, and recommended handling. It lists ordering codes, dimensions, electrical characteristics, packaging options, and reliability data for each part number.
Detailed tables give external dimensions, rated current, impedance, temperature ranges, and soldering precautions. Packaging information such as tape‑and‑reel quantities and recommended flux limits for soldering are also included, helping designers select the appropriate component and ensure reliable assembly. This manual is written in Japanese.
| External dimensions (BKP0603) | 0.6 mm × 0.3 mm |
|---|---|
| Impedance at 10 kHz (BKP0603) | 10 Ω |
