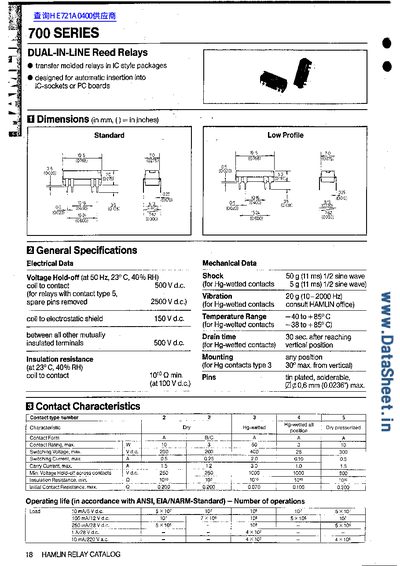

The catalog presents the 700 SERIES dual‑in‑line reed relays, detailing mechanical dimensions, electrical data, and contact characteristics. It includes tables for voltage hold‑off, shock, vibration, temperature range, insulation resistance, and contact ratings.
Additional sections cover operating life expectations, coil characteristics for each relay variant, and an ordering guide with pin configurations and optional features such as magnetic shields and diode options.
| Shock | 50 g (11 ms) 1/2 sine wave |
|---|---|
| Vibration | 20 g (10‑2000 Hz) |
| Temperature Range | ‑40 °C to +85 °C |
| Insulation Resistance (min.) | 10^10 Ω |
| Contact Rating (max.) | 10 W |
| Switching Voltage (max.) | 200 Vdc |
| Carry Current (max.) | 1.5 A |
| Operating Life (10 mA/5 V load) | 5 × 10⁷ operations |
| Coil Voltage (HE721A series) | 500 Vdc |
The maximum contact rating is 10 W.
The specified operating life is about 5 × 10⁷ operations.
The HE721A series requires a coil voltage of 500 Vdc.
