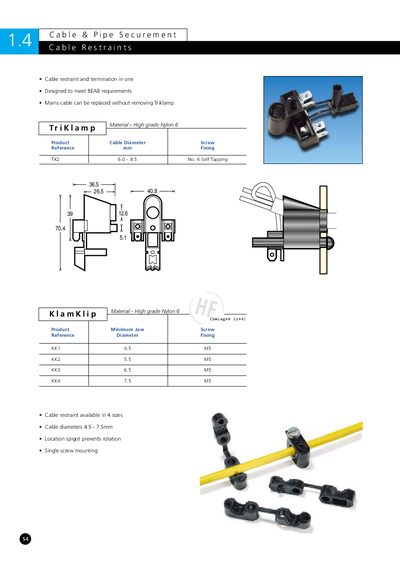

This document introduces the characteristics and features of three products: Cable Restraints, Klam Clip and Klam Bush.
The HellermannTyton cable restraints are designed for secure cable and pipe management in domestic appliances. They combine restraint and termination in one unit, meet BEAB requirements, and allow mains cable replacement without removing the Triklamp.
Available in four sizes, the restraints are made from high‑grade, halogen‑free Nylon 6 and feature a single‑screw mounting with a spigot that prevents rotation. They support cable diameters from 4.5 mm to 7.5 mm and are suitable for bushings at the point of entry into appliances.
| TK2 cable diameter | 60‑85 mm, No. 6 self‑tapping screw |
|---|---|
| KK1 minimum jaw diameter | 45 mm, M5 screw |
| KB1 cable diameter | 12.7 mm |
| Material | High grade Nylon 6 (halogen free) |
They are made of high‑grade Nylon 6, which is halogen‑free.
Four size options are offered, covering cable diameters from 4.5 mm to 7.5 mm.
Yes, the design allows the mains cable to be replaced without removing the Triklamp.
