This is a product introduction of ABBatron Spring Loaded Binding Posts 1837. This product is a heavy duty, waterproof connector, suitable for various harsh environments.

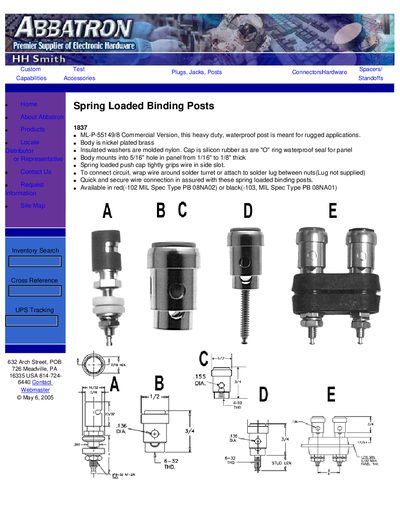

The HH Smith line from ABBATRON offers a range of custom test accessories including spring‑loaded binding posts, plugs, jacks and hardware spacers. The posts feature a nickel‑plated brass body, insulated nylon washers, and a silicone‑rubber cap with a waterproof seal, providing a rugged, waterproof solution for rugged applications.
These accessories are available in red (MIL Spec Type PB O8NA02) or black (MIL Spec Type PB 08NA01) and mount into a 5/16" hole in panels ranging from 1/16" to 1/8" thick. Ordering information and contact details are provided for ABBATRON’s US office in Meadville, PA.
| Body material | nickel plated brass |
|---|---|
| Insulated washer material | nylon |
| Cap material | silicon rubber |
| Mounting hole size | 5/16" hole |
| Panel thickness compatibility | 1/16" to 1/8" |
| Available colors | red (MIL Spec Type PB O8NA02) or black (MIL Spec Type PB 08NA01) |
The body is nickel plated brass.
They are available in red (MIL Spec Type PB O8NA02) or black (MIL Spec Type PB 08NA01).
The post mounts into a 5/16" hole and fits panels from 1/16" to 1/8" thick.
