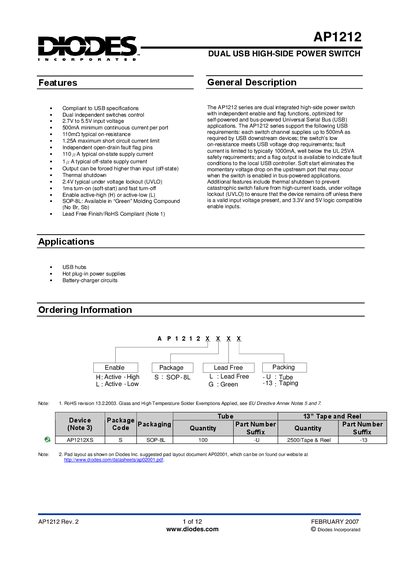

The AP1212 series are dual integrated high-side power switch with independent enable and flag functions, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. The AP1212 series support the following USB requirements: each switch channel supplies up to 500mA as required by USB downstream devices; the switch’s low on-resistance meets USB voltage drop requirements; fault current is limited to typically 1000mA, well below the UL 25VA safety requirements; and a flag output is available to indicate fault conditions to the local USB controller. Soft start eliminates the momentary voltage drop on the upstream port that may occur when the switch is
The AP1212 series from Diodes Incorporated provides dual independent high‑side power switches for USB applications. Each channel can supply up to 500 mA continuous current and includes fault‑flag outputs for over‑current, UVLO, and thermal shutdown detection.
The device is offered in an SOP‑8L package and operates from a 2.7 V to 5.5 V supply. Key electrical parameters such as on‑resistance, enable thresholds and turn‑on timing are specified, along with typical performance curves for resistance, current and temperature.
| Continuous Current per Port | 500 mA |
|---|
Each port can supply a minimum of 500 mA continuous current.
Enable inputs are logic‑compatible; EN1 is active‑high (H) or active‑low (L) with thresholds of about 0.8 V to 1.7 V.
