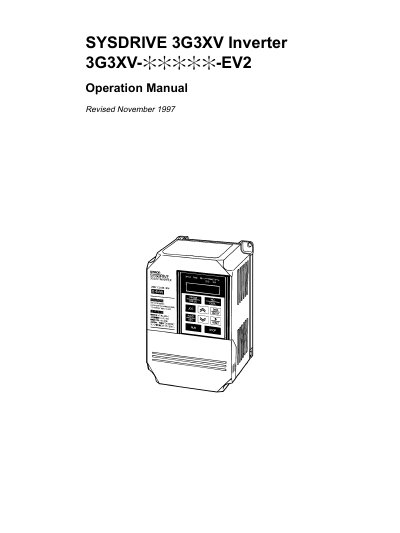

This document is the instruction manual of the 3G3XV inverter, which introduces the overview, technical parameters, installation and wiring, operation and maintenance of the product.
The SYSDRIVE 3G3XV‑EV2 is an all‑digital low‑noise inverter designed for industrial motor drives. It supports 200‑V and 400‑V classes, offers sine‑wave PWM control, and includes safety features such as overload and ground‑fault protection.
The manual is organized into three sections: the main unit (part names, receiving, installation, wiring, operation, specifications), the digital operator (components, constant settings, examples), and troubleshooting & maintenance (fault display, motor fault correction, maintenance procedures). It also contains a revision history and terms of sale.
| Rated output current (A) | 0.8 |
|---|---|
| Maximum output voltage | 3‑phase, 200 to 230 V |
| Control method | Sine wave PWM |
| Overload capacity | 150% rated output current for one minute |
The inverter may be installed at –10 °C to 40 °C with the top cover on, or –10 °C to 45 °C with the top cover off.
It can operate at 150 % of rated output current for one minute.
