This document is an installation guide for burglar alarm. It provides the best location for burglar alarm and recommends to install fire detection equipment in all rooms and areas of the household.

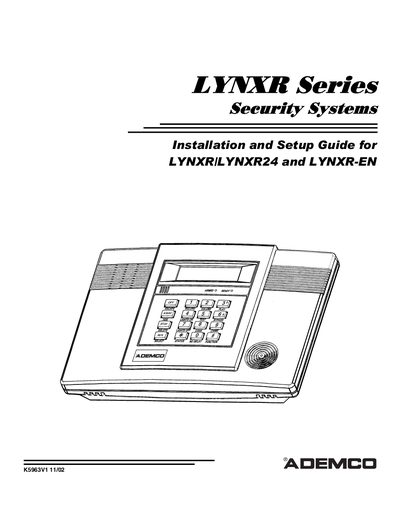

The LYNXR Series (including LYNXR‑24 and LYNXR‑EN) are self‑contained, rechargeable wireless control panels for fire and burglary detection. The guide explains proper placement of detectors, system features such as voice annunciation, user codes, and communication protocols.
Detailed instructions cover wall and desktop mounting, wiring of hard‑wired and wireless zones, power‑line carrier device connections, backup battery installation, and programming modes. Safety warnings, troubleshooting tips, and technical support contacts are also provided.
| Maximum wireless zones | 24 |
|---|---|
| Maximum wireless button zones | 16 |
| Maximum Powerline Carrier Devices | 8 |
| Backup battery type | Six 1.2 V rechargeable nickel‑metal hydride batteries |
| Built‑in sounder output | Piezo 30 mA max, Bell 120 mA max |
| Maximum hard‑wired zone resistance | 300 Ω |
The LYNXR control can support up to 24 wireless zones.
It uses a backup pack of six 1.2 V rechargeable nickel‑metal hydride batteries.
The piezo sounder is limited to 30 mA maximum current.
