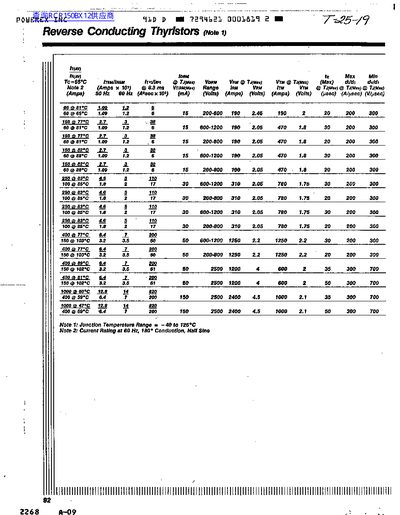

This datasheet provides the electrical specifications for Powerex reverse conducting thyristors, including forward and reverse voltage ratings, current ratings at various temperatures, and junction temperature limits. It also lists standard specifications such as the current rating method (60 Hz, 180° conduction, half‑sine) and temperature range.
The document details the tape‑and‑reel packaging dimensions, including product width, height, thickness, lead wire diameter, and tape width. Dimensional tolerances and cumulative pitch errors are also provided for accurate automated assembly.
| Junction Temperature Range | -40 to 125°C |
|---|---|
| Maximum Forward Voltage (65°C) | 1.09 V |
| Product Width | 5.0 mm |
| Product Height | 5.0 mm |
| Product Thickness | 3.7 mm |
| Lead Wire Diameter | 0.6 mm |
The junction temperature range is –40 °C to 125 °C.
The package is 5.0 mm wide, 5.0 mm high, and 3.7 mm thick.
The maximum forward voltage at 65 °C is 1.09 V.
The lead wire diameter is 0.6 mm.
