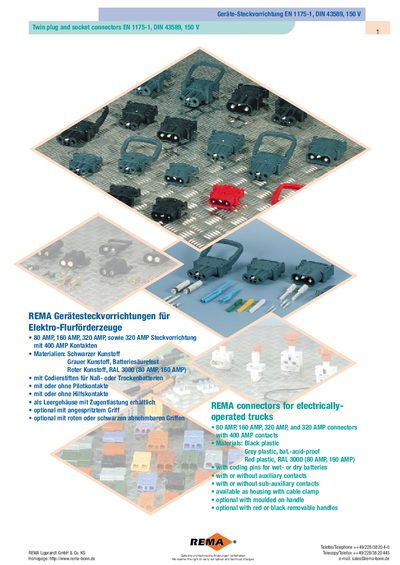

The document introduces the Geräte-Steckvorrichtung product range from REMA Lipprandt GmbH & Co. KG, including 80 AMP, 160 AMP, 320 AMP, and 320 AMP models with 400 AMP contacts. The product range features plastic materials in different colors, suitable for wet or dry batteries, and optional with auxiliary contacts or sub-auxiliary contacts. Additionally, the product can be selected with a removable handle.
The REMA Geräte‑Steckvorrichtung handbook provides detailed information on plug and socket connectors compliant with EN 1175‑1 and DIN 43589. It lists current‑carrying capacities of 80 A, 160 A, 320 A and 400 A, the 150 V rating, and part numbers for each variant.
The document also describes optional options such as pilot contacts, auxiliary contacts, removable handles and cable‑clamp housings, and explains the REMA WMS crimp technology used for reliable electrical and mechanical connections. This manual is written in German.
| Standard | EN 1175‑1, DIN 43589 |
|---|
The allowable ampacity rating is determined by the ampacity rating of the wire or cable used with the connector.
REMA uses WMS crimp technology with specially developed crimp forms for each cable cross‑section.
