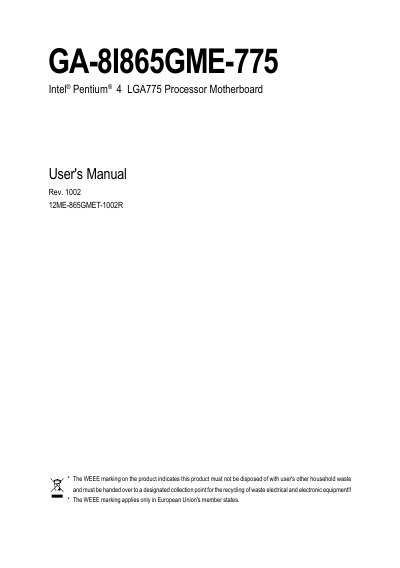

This document is the user manual for GA-8I865GME-775 motherboard, which introduces the functions and usage of the motherboard.
This manual guides users through installing and configuring the GA-8I865GME-775 motherboard, covering safety precautions, CPU and heatsink mounting, memory installation, expansion cards, and I/O connections. It also includes troubleshooting tips and contact information for technical support.
Key sections include a detailed hardware installation guide, BIOS setup options, driver installation instructions, and an appendix with software utilities and worldwide support contacts.
| CPU Support | LGA775 Intel Pentium 4 |
|---|---|
| Front Side Bus | 800/533 MHz |
| Northbridge Chipset | Intel 865G |
| Southbridge Chipset | Intel ICH5 |
| LAN | Onboard EP82562G 10/100 Mbit |
| Audio Codec | Onboard ALC653 chip |
| Memory Slots | 2 DDR DIMM slots, up to 2 GB |
| Supported Memory Types | DDR400/333/266, dual‑channel, 2.5 V |
| Expansion Slots | 1 AGP 4X/8X (1.5 V), 3 PCI slots |
| SATA Connectors | 2 SATA ports |
| USB Ports | 4 USB 2.0/1.1 ports (plus 2 optional via cable) |
It supports DDR memory modules, up to 2 GB total, in dual‑channel DDR400/333/266 configurations.
