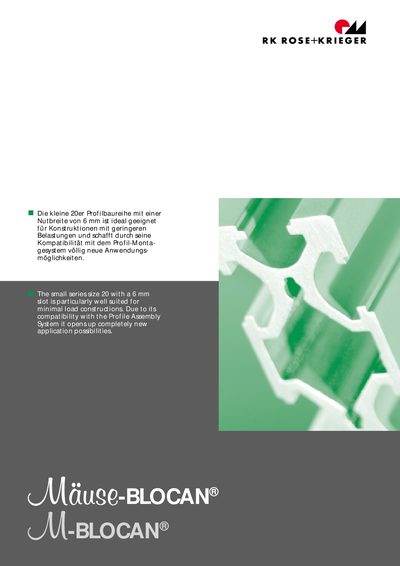

BLOCAN® The small series size 20 is a component suitable for minimal load constructions, with a 6 mm slot. It opens up completely new application possibilities due to its compatibility with the Profile Assembly System.
The M‑BLOCAN system by RK Rose+Krieger offers a range of aluminium profiles with a 6 mm slot width, suitable for low‑load constructions and compatible with the Profile Assembly System. The leaflet lists the various profile families, their dimensions, material finishes and code numbers.
Detailed tables describe each profile (e.g., F‑20x20, F‑20x40, KL‑20x20) with weight per metre, coating type and available flange brackets, adapters and cover caps. Accessories such as clamping profiles, cover caps made of PA and threaded inserts are also catalogued with part numbers. This manual is written in German.
| F‑20x20 profile weight | 533 g/m |
|---|---|
| F‑20x40 profile weight | 846 g/m |
| Profile surface coating | Eloxal anodized |
| Cover cap material | PA (polyamide), black |
The cover caps are made of PA (polyamide) in black.
The F‑20x20 profile weighs 533 g per metre.
The F‑20x40 profile weighs 846 g per metre.
