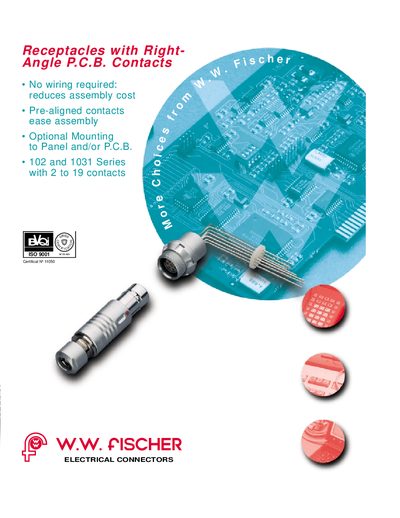

This document describes receptacles with right-angle P.C.B. contacts. They do not require wiring, reducing assembly costs. The pre-aligned contacts make assembly easier. Optional mounting to panel and/or P.C.B. is available. The 102 and 1031 series offer 2 to 19 contacts. The product is ISO 9001 certified.
The 102 and 1031 series receptacles feature right‑angle PCB contacts that require no wiring, reducing assembly cost. Contacts are pre‑aligned for easy assembly and optional mounting to a panel or directly to a PCB is available.
Electrical specifications include 2 to 19 contacts per receptacle, nickel‑plated brass construction, and various part numbers for different finishes. Optional mounting clamps provide additional grounding of the body to the PCB.
| Series | 102 and 1031 |
|---|---|
| Number of Contacts | 2 to 19 |
| Material | Nickel plated brass |
Optional mounting directly to the PCB with two M1.6 × 12 screws, which also provides additional grounding of the body to the PCB.
The 102 series can be configured with 2 to 19 contacts.
The contacts are made of nickel‑plated brass.
Typical part numbers include DBPC 102 A0SX‑130 (satin chrome) and DBPC 102 A0SX‑140 (black chrome).
