This document describes the features and benefits of ITT Cannon's B KSA and KSL series sealed tactile switches. The switches are designed for automatic or manual insertion, with cambered terminals for self retention. They can be top or side actuated and offer a large choice of caps. The switches are RoHS compliant and suitable for various applications, including automotive, industrial, and telecommunication networks.
The KSA and KSL Series sealed tactile switches are designed for automatic or manual insertion in automotive, industrial, and telecommunication applications. Features include cambered terminals for self‑retention, top or side actuation, a large choice of caps, and RoHS compliance.

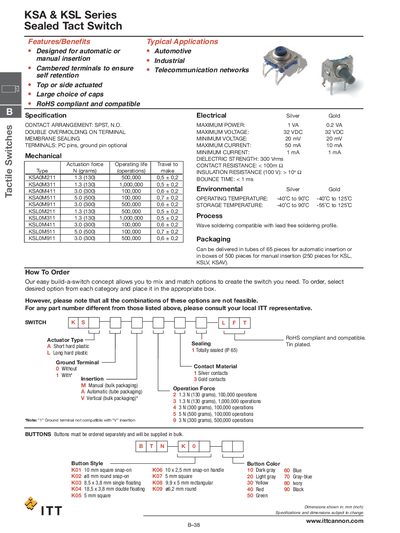

The leaflet lists electrical specifications such as maximum power, voltage, current, and operating life, as well as mechanical data like actuation force and travel. It also details ordering options, packaging formats (tube or bulk), available contact materials (silver or gold), sealing options, and compatible button styles.
| Maximum Power | 1 VA (Silver), 0.2 VA (Gold) |
|---|---|
| Maximum Voltage | 32 VDC |
| Maximum Current | 50 mA (Silver), 10 mA (Gold) |
| Operating Life | up to 1,000,000 operations |
| Actuation Force | 1.3 N (130 g) to 5.0 N (500 g) |
| Insulation Resistance | > 10 MΩ (100 V) |
| Operating Temperature | -40 °C to 90 °C (Silver), -40 °C to 125 °C (Gold) |
They can be delivered in tubes of 65 pieces for automatic insertion or in boxes of 500 pieces for manual insertion (250 pieces for KSL, KSLV, KSAV).
Yes, the switches are RoHS compliant and compatible.
Both silver contacts and gold contacts are available.
Option code 0 provides sealing against flux, while option code 1 provides a totally sealed switch.
