JO53 is a 3.3 V crystal oscillator produced by Jauch Quartz GmbH. The frequency range is 0.5 ~ 125.0 MHz and the frequency stability is ±20 ppm.
The JO53 is a surface‑mount quartz oscillator offered by Jauch Quartz GmbH. It operates at 3.3 V and provides a frequency range from 0.50 MHz up to 125.0 MHz with a stop function for low‑power standby.

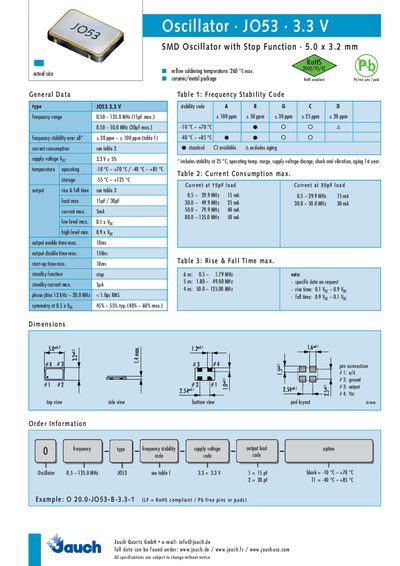

The datasheet lists electrical characteristics, mechanical dimensions, packaging details, and recommended reflow soldering profiles. It also includes ordering information and compliance notes such as RoHS and Pb‑free pins.
| Frequency range | 0.50 ~ 125.0 MHz |
|---|---|
| Supply voltage | 3.3 V |
| Current consumption (0.5‑29.9 MHz, 15 pF load) | 15 mA |
| Output high level minimum | 0.9 × Voc |
| Output low level maximum | 0.1 × Voc |
| Output enable time (max) | 10 ms |
| Output disable time (max) | 150 ns |
| Storage temperature range | -55 °C ~ +125 °C |
| Operating temperature range | -10 °C ~ +70 °C |
The JO53 operates from a 3.3 V supply.
It covers frequencies from 0.50 MHz up to 125.0 MHz.
The maximum reflow temperature is 260 °C.
Standard packing units are 500 pieces per reel.
