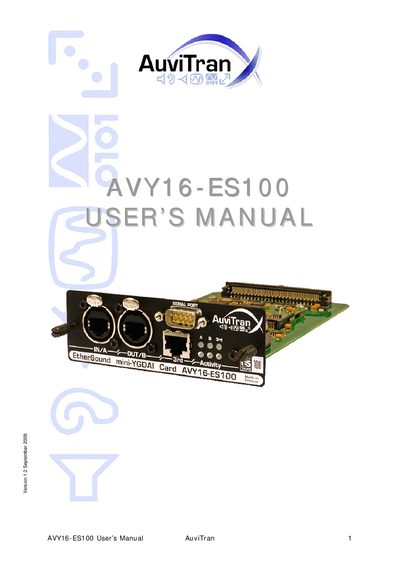

This manual describes the AuviTran AVY16-ES100 board’s features and characteristics, including technical specifications, plugging the board, synchronization management, software download and installation, using ESMonitor software to control the board, third port and remote control, and ring architecture.
The AVY16-ES100 is a digital audio interface board that provides two EtherSound™ connectors, an RS232 port and a third Ethernet port for remote monitoring and ring‑network management. It supports up to 16 input and 16 output audio channels at 44.1 kHz or 48 kHz and includes a built‑in ES100 kernel for redundant ring architectures.
The manual guides users through safety precautions, mechanical installation, synchronization setup, software download (ESMonitor), and detailed configuration of the board’s functions such as RS232 tunnelling, lock routing and emergency clock features.
| Size | 120 mm x 160 mm x 40 mm |
|---|---|
| Power Consumption | <4 Watts |
| Power Supply | +5 V, +3.3 V, GND (from mini‑YGDAI slot) |
| Storage Temperature / Humidity | 5 °C to 70 °C, up to 95 % non‑condensing |
| Audio Format | 24‑bit |
| Synchronization | 44.1 kHz to 48 kHz + 5 % from EtherSound |
| External Clock Synchronisation | Automatic from EtherSound network at 44.1 kHz or 48 kHz |
The package contains one AVY16-ES100 board and its fixing screws.
The board consumes less than 4 W and is powered from a +5 V, +3.3 V and GND supply via the mini‑YGDAI slot.
The third Ethernet port is used for ring management or simple control/monitoring of the EtherSound network.
