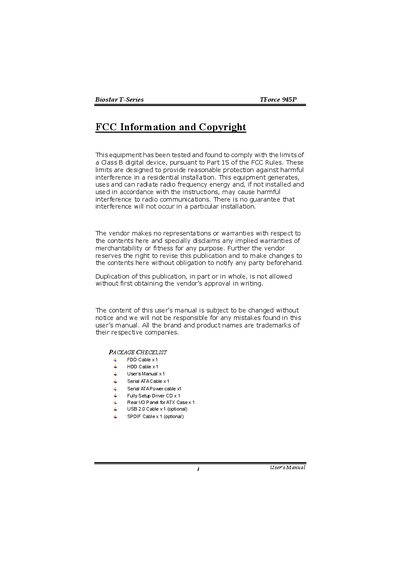

The Biostar T-Series TForce 945P User's Manual provides FCC information and copyright statement for the device, as well as a package checklist.
This manual covers the Biostar TForce 945P motherboard, detailing its features, supported CPUs, chipset, memory, and I/O options. It includes a package checklist, layout diagrams, and a full list of connectors and ports.
Installation sections guide you through CPU mounting, fan header connections, and hardware setup, while the useful help chapter offers driver notes, BIOS beep codes, extra information, and troubleshooting tips for common issues.
| CPU Socket | LGA775 |
|---|---|
| Front Side Bus | 533MT/s, 800MT/s, 1066MT/s |
| North Bridge Chipset | Intel 945P |
| Memory Type | DDR2 (dual channel) |
| Maximum Memory Capacity | 4 GB (4 DIMM sockets) |
| SATA Ports | 4 SATA II (3 Gb/s) ports |
| PCI‑Express Slots | 1 × 16, 2 × 1 |
| USB 2.0 Ports | 4 rear ports |
| Gigabit Ethernet | Realtek RTL8110S‑32/8110SC, 10/100/1000 Mb/s auto‑negotiation |
| Audio Codec | Realtek ALC655, 6‑channel output |
| Fan Headers | CPU FAN header JCFAN1, System FAN header JSFAN1 (4‑pin Smart Fan control) |
