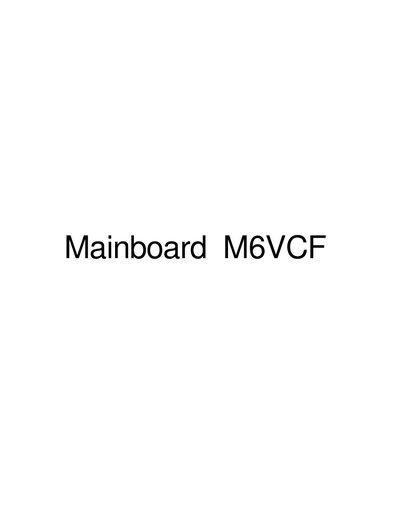

M6VCF motherboard
The Mainboard M6VCF manual provides detailed information on the motherboard’s hardware features, connector layout, and BIOS configuration. It guides users through CPU and DRAM installation, power‑management settings, and audio subsystem connections.
Additional sections cover software installation, system troubleshooting, and regulatory compliance information such as FCC and Canadian D.O.C. statements. The document is intended for end‑users and system integrators assembling or maintaining a PC based on this board.
| CPU socket type | Socket 370 |
|---|---|
| Front Side Bus frequency | 66/100/133 MHz |
| CPU core speed range | 233 MHz – 733 MHz |
| PCI bus speed | 33 MHz |
| DIMM module sockets | Two sockets supporting 8/16/32/64/128/256 MB modules |
| Maximum memory capacity | 768 MB SDRAM |
| DRAM type | Synchronous 3.3 V SDRAM |
| DRAM bus frequency | 133 MHz |
| Power‑down timer range | 1 minute – 1 hour |
| Wake‑On‑LAN connector | Present |
