This document is an electric motor instruction manual that introduces how to use the motor, precautions, maintenance and maintenance.

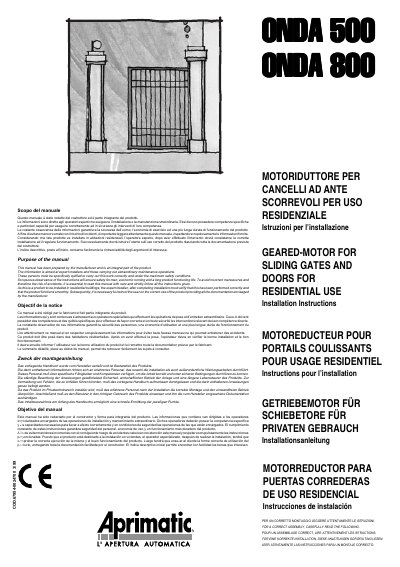

This manual provides step‑by‑step instructions for installing and commissioning the Aprimatic ONDA 500 and ONDA 800 geared‑motors, which are designed for residential sliding gates and doors. It covers safety precautions, preparation work, component arrangement, and wiring details to ensure a reliable and safe operation.
The guide also includes technical data, recommended tools, foundation and anchoring methods, and adjustment procedures for torque limiters and safety devices. Qualified installers can use it to verify correct assembly, perform functional tests, and train end users on proper use. This manual is written in Italian.
| Power supply (V) | 230V ±10% (50/60 Hz) |
|---|---|
| Maximum absorbed power (W) | 260 W |
| Capacitor (µF) | 20 µF (ONDA 500), 25 µF (ONDA 800) |
| Working temperature (°C) | –25 °C to +70 °C (internal unit) |
| Weight (kg) | 14 kg |
| Maximum gate weight (kg) | 500 kg (ONDA 500), 800 kg (ONDA 800) |
| Maximum shaft torque (daNm) | 3 daNm (ONDA 500), 4 daNm (ONDA 800) |
The ONDA 500 can drive gates up to 500 kg, while the ONDA 800 can handle gates up to 800 kg.
The motor requires a 230 V supply with a tolerance of ±10 % at 50 Hz or 60 Hz.
The foundation plate should be placed 20–30 cm above the ground to avoid snow or flood damage.
