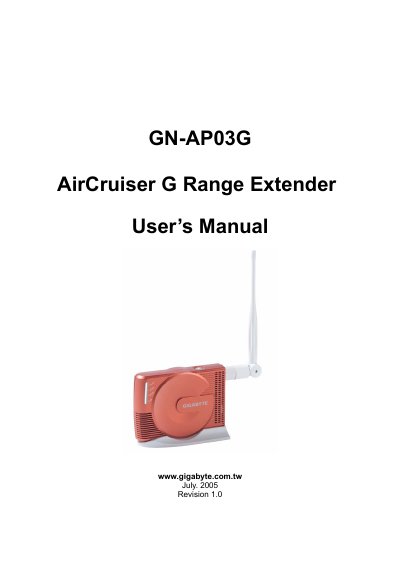

This document is the user manual for GN-AP03G AirCruiser G Range Extender, which provides the Federal Communication Commission interference statement and operation precautions for the product.
This manual introduces the GN-AP03G AirCruiser G Range Extender, a Gigabyte device that expands 802.11b/g wireless coverage without additional cabling. It describes the hardware layout, including the rear panel ports, antenna, and status LEDs, and lists the package contents.
The guide covers quick installation steps, both automatic (Auto‑WDS) and manual WDS configuration, web‑based settings, and detailed specifications such as wireless standards, power requirements, and dimensions. A troubleshooting appendix and warranty information are also included.
| Ethernet port speed | 10/100 Mbps |
|---|---|
| Power adapter | 7.5 V, 800 mA |
| CPU / Flash / SDRAM | RDC R2 600, 1 MB Flash, 8 MB SDRAM |
| Wireless standards | IEEE 802.11b/g |
| Maximum data rate | 54 Mbps |
| Operating range (open space) | 100–300 m |
| Frequency band | 2412–2484 MHz |
| Output power (peak) | 20 dBm @ 54 Mbps |
| Dimensions | 88.34 mm × 63.46 mm × 21 mm |
| Weight | 80 g (incl. antenna) |
The device supports data rates up to 54 Mbps.
It requires a 7.5 V, 800 mA power adapter.
