Axper XP-P4IM533GV Intel Pentium 4 Motherboard User Manual

This is a user manual for XP-P4IM533GV motherboard

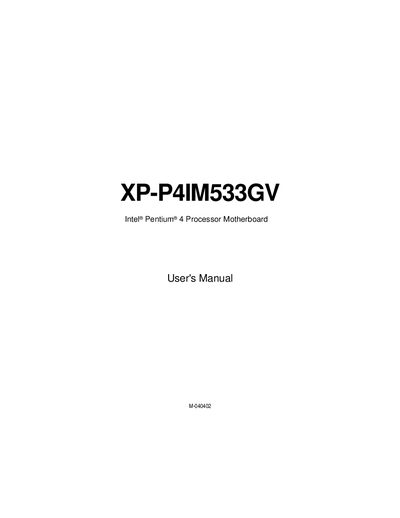

Axper XP-P4IM533GV Intel Pentium 4 Motherboard User Manual - cover page
Brand
XP-P4IM533GV
Category
Motherboard
Document type
User Manual
Language
English
Pages
25
File format
PDF
File size
625 KB
Published
04 May, 2012
Updated
30 September, 2023
MD5 checksum
C419BF521D3B7952CB34DFAE1FBE68FB
PDF
Axper XP-P4IM533GV Intel Pentium 4 Motherboard User Manual PDF

About this manual

The Axper XP-P4IM533GV motherboard manual provides step‑by‑step instructions for installing the CPU, memory, graphics card, and other components. It also details the back‑panel connectors, jumper settings, and front‑panel connections.

Additional sections cover BIOS configuration options, such as Top Performance, Fail‑Safe defaults, and password setup, as well as driver installation for Windows operating systems. The manual includes hardware specifications and troubleshooting tips.

What's inside

  • Production Introduction
  • Feature Summary
  • VO Back Panel and Connectors
  • Hardware Installation
  • BIOS Setup
  • Driver Installation

Specifications

CPU socketSocket 478 for Intel Pentium 4
North Bridge chipsetIntel 845GV
South Bridge chipsetIntel ICH4
Memory capacityUp to 2 GB DRAM
Supported memory typesDDR333 / DDR266 DIMM
PCI slots3 slots, 33 MHz, PCI 2.2 compliant
USB ports6 USB 2.0/1.1 ports
Form factorMicro ATX (24.3 cm × 19 cm)

Frequently asked questions

What does the Top Performance BIOS option do?

Top Performance enables faster system start but may cause instability on some hardware; disable it if problems occur.

How can I reset the BIOS settings to defaults?

Select the Load Fail‑Safe Defaults option and confirm with and to restore system defaults.
