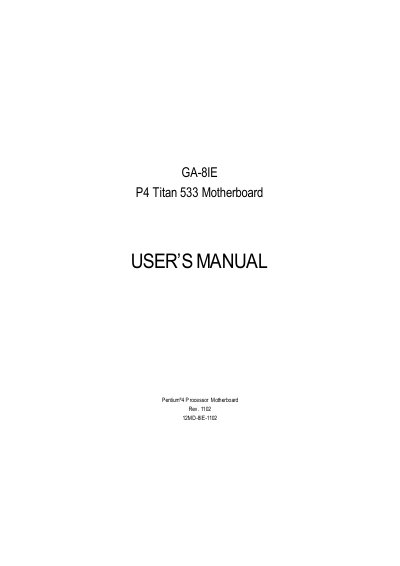

This document is the user manual for the GA-8IE P4 Titan 533 motherboard. It provides information on the features and layout of the motherboard, as well as the hardware installation process, BIOS setup, driver installation, and BIOS flash procedure.
This manual covers everything needed to install and configure the GA-8IE P4 Titan 533 motherboard. It begins with safety precautions, then walks you through CPU installation, memory module placement, expansion card insertion, and connecting all required cables and power supplies. Subsequent chapters describe BIOS navigation, driver installation, and the BIOS flash procedure.
The document also lists the motherboard’s technical specifications, including its ATX form factor, supported Intel Pentium 4 processors, chipset details, memory capacity, and available I/O ports. Detailed diagrams of the board layout help identify connectors and jumpers for proper setup.
| Form factor | ATX |
|---|---|
| CPU socket | Socket 478 for Intel® Pentium 4 |
| Chipset | Intel 845E HOST/AGP/Controller |
| Maximum memory | 2 GB DRAM |
| DIMM slots | 3 DDR DIMM sockets |
| PCI slots | 5 PCI slots (33 MHz, PCI 2.2 compliant) |
| USB ports | 6 × USB 2.0/1.1 (2 rear, 4 front) |
Open the CPU socket lever, align the CPU’s pin‑1 indicator with the socket notch, insert the CPU, then close the lever to secure it.
The board provides three 184‑pin DDR DIMM sockets and supports up to a total of 2 GB of DDR memory.
Boot from a floppy, run the BIOS flash utility with the BIOS file (e.g., Flash841 7VTX.F4), confirm the prompts, and let the utility complete the flash before restarting.
It uses the standard ATX form factor.
