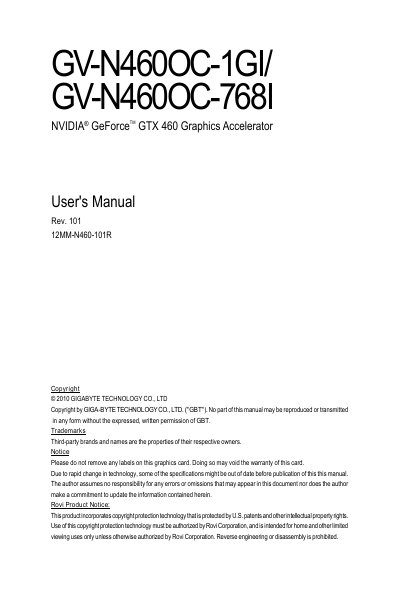

This document introduces the characteristics of GV-N460OC-1GI/ GV-N460OC-768I NVIDIA® GeForce TM GTX 460 Graphics Accelerator
This manual introduces the GV-N460OC-1GI and GV-N460OC-768I graphics cards, which are powered by the NVIDIA GeForce GTX 460 GPU and come with either 1 GB or 768 MB of GDDR5 memory. It outlines the minimum system requirements, supported interfaces (PCI Express 2.0, DirectX 11, SLI) and the available display connectors (two Dual‑Link DVI‑I and one mini HDMI).
The guide walks you through hardware installation, including board layout, power‑connector wiring (two 6‑pin PCI Express auxiliary connectors), and anti‑static precautions. It also covers software installation, driver setup, accessing the NVIDIA Control Panel, and troubleshooting tips. An appendix provides BIOS reflashing instructions, resolution tables, and regulatory information.
| GPU | NVIDIA GeForce GTX 460 |
|---|---|
| Memory (GV-N460OC-1GI) | 1 GB GDDR5 |
| Memory (GV-N460OC-768I) | 768 MB GDDR5 |
| Interface | PCI Express 2.0 |
| DirectX Support | DirectX 11 |
| Display Connectors | 2 Dual‑Link DVI‑I, 1 mini HDMI |
| Power Connectors | Two 6‑pin PCI Express auxiliary connectors |
| Recommended Power Supply (single card) | 450 W |
| Recommended Power Supply (SLI) | 600 W |
Each card requires two 6‑pin PCI Express auxiliary power connectors from the computer’s power supply.
The card provides two Dual‑Link DVI‑I connectors and one mini HDMI connector for up to three displays (using adapters if needed).
Insert the driver disc, run the setup.exe program, click "Install Display Driver", then click "Next" to complete the installation.
