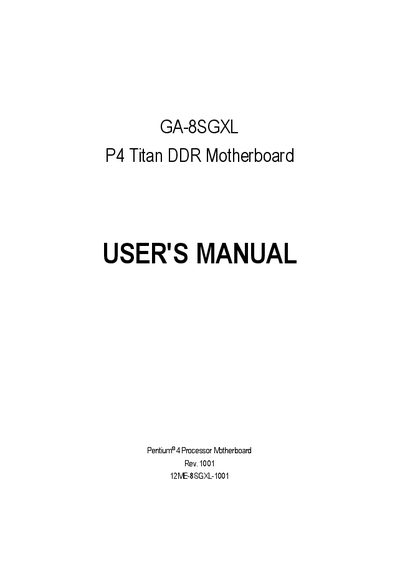

This is a user manual for GA-8SGXL P4 Titan DDR motherboard, which introduces the features of the motherboard and the process of installing hardware
This manual covers the complete hardware installation process for the GA-8SGXL ATX motherboard, including CPU, memory, expansion cards, and power connections. It also details BIOS configuration options and on‑board peripheral features.
Safety precautions for handling the motherboard, such as using an antistatic wrist strap and grounding the chassis, are provided to prevent damage to the delicate integrated circuits.
| Form Factor | ATX (30.4 cm x 24.3 cm) |
|---|---|
| CPU Socket | Socket 478 for Intel Pentium 4 |
| Chipset | SiS 648 Host/Memory controller |
| Memory Slots | 3 DDR DIMM slots, supports DDR200/266/333 |
| Maximum RAM | 3 GB DRAM |
| AGP Slot | 1 AGP 4X/8X (1.5 V) slot |
| PCI Slots | 5 PCI slots (33 MHz, PCI 2.2 compliant) |
| USB Ports | 6 USB 2.0/1.1 ports (2 rear, 4 front) |
| On‑Board LAN | RTL8100BL chipset, 1 RJ45 port |
The board provides six USB 2.0/1.1 ports – two on the rear and four on the front.
It uses a Socket 478 designed for Intel Pentium 4 processors.
The motherboard can support up to 3 GB of DDR memory.
