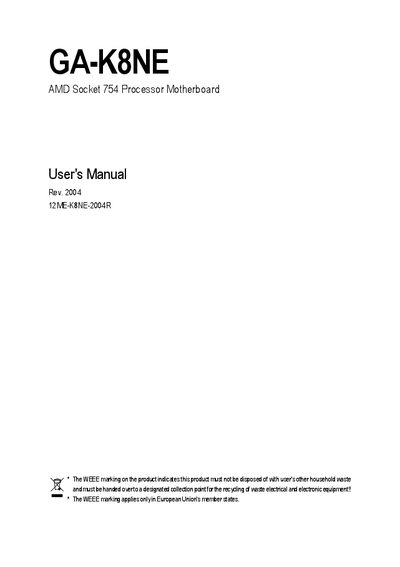

This document is the user manual for the GA-K8NE AMD Socket 754 processor motherboard. It provides information on the WEEE marking, precautions, specifications, features, and usage guide of the product.
This manual covers the hardware layout, installation steps, BIOS configuration, and driver installation for the Gigabyte GA‑K8NE motherboard. It includes detailed diagrams of the board layout, block diagram, and connector descriptions.
Additional sections provide troubleshooting tips, utility software introductions, and contact information for global technical support.
| CPU Socket | Socket 754 |
|---|---|
| Supported Memory | DDR 400/333/266/200 MHz DIMM |
| PCI Express Slots | x16 and x1 |
| Serial ATA Ports | 2 SATA ports |
| CPU Clock Frequency | 100 MHz (±200 MHz range) |
The model number is GA‑K8NE.
It uses an AMD Socket 754.
The board supports DDR memory at 400, 333, 266, and 200 MHz.
The motherboard is manufactured by Gigabyte Technology Co., Ltd.
