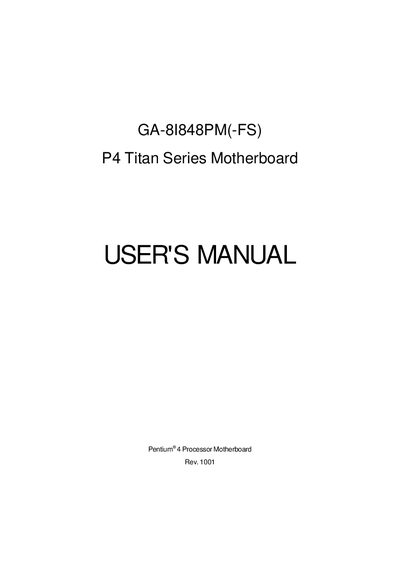

GA-8I848PM(-FS) Motherboard User's Manual, introduces the features and characteristics of the motherboard, hardware installation process, BIOS setup and other information.
This manual provides step‑by‑step instructions for installing the GA-8I848PM(-FS) motherboard, including CPU, memory, expansion cards and I/O peripheral connections. It also explains how to configure the BIOS, set passwords, and use the on‑board features such as LAN, audio, and USB ports.
Safety precautions for handling the board are detailed, with guidance on static‑electric protection, proper grounding, and correct mounting techniques to avoid damage to the delicate integrated circuits.
| Form Factor | Micro ATX (24.4 cm × 24.4 cm) |
|---|---|
| CPU Socket | Socket 478 |
| Chipset | Intel 848P |
| Memory Support | DDR400/DDR333/DDR266 DIMM, up to 2 GB, 2.5 V only |
| On‑board LAN | Realtek RTL8100C 10/100 Mbit |
| Audio Codec | Realtek ALC655 |
| USB Ports | 8 USB 2.0/1.1 ports (4 rear, 4 front) |
Unplug the computer, use a grounded wrist strap or touch a grounded metal object, handle components by the edges, place them on an antistatic pad or their original bag, and ensure the ATX power supply is switched off before connecting or removing power connectors.
