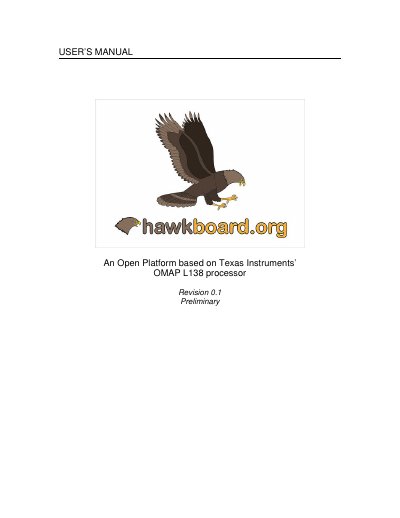

This manual introduces the open platform based on Texas Instruments' OMAP L138 processor. The platform provides comprehensive software and hardware interfaces for rapid development and customization.
This manual introduces the Hawkboard, an open‑platform development board built around Texas Instruments' OMAP L138 processor. It describes the board’s features, peripheral interfaces, and intended use in digital media and storage applications.
The guide covers board setup, power requirements, hardware description, electrical specifications, and mechanical dimensions, as well as warranty, return policy, and life‑support equipment restrictions.
| Processor | TI OMAP‑L138 Low Power Application Processor |
|---|---|
| CPU | 300 MHz ARM926EJ‑STM RISC |
| DSP | 300 MHz C674x VLIW |
| DDR2 SDRAM | 128 MB running at 150 MHz |
| NAND Flash | 128 MB |
| Fast Ethernet Port | 10/100 Mbps |
| USB Host Port | USB 1.1 |
| USB OTG Port | USB 2.0 (also power source) |
| SATA Port | 3 Gbps |
| VGA Port | 15‑pin D‑SUB |
| Audio Ports | Two (Line In & Line Out) |
The Hawkboard is warranted against defects in materials and workmanship for 90 days from purchase.
Yes, but the USB OTG power source provides a maximum of 500 mA, and full operation is not guaranteed.
No, the Hawkboard is not authorized for life‑support devices or systems.
The input voltage must not exceed 5 V.
