The SC 08 is a programmable time switch that can be programmed with the power disconnected. It has 1 channel and can be programmed with a daily and weekly program. It supports ON, OFF or pulse functions with a pulse length of 01.59 seconds and a minimum interval of 1 minute. The switch has a power capacity of 16 A / 250 V and comes with a removable programming module.

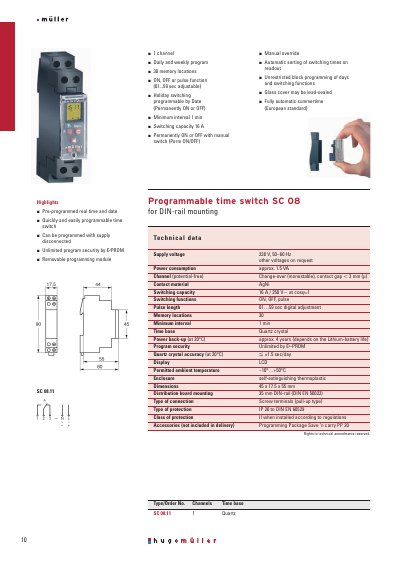

The SC 08 is a DIN‑rail‑mountable programmable time switch designed for industrial control panels. It features a pre‑programmed real‑time clock, an LCD display, and can be programmed with the power supply disconnected. The unit offers unlimited program security via E2‑PROM and includes a removable programming module.
Technical data include a 230 V supply voltage, 1.5 VA power consumption, 16 A/250 V switching capacity, 30 memory locations with a minimum interval of 1 min, and a quartz‑crystal time base with ±1.5 sec/day accuracy. The enclosure is IP20 rated, dimensions are 45 × 17.5 × 55 mm, and the device operates from –10 °C to +50 °C.
| Supply voltage | 230 V, 50–60 Hz |
|---|---|
| Power consumption | ≈ 1.5 VA |
| Switching capacity | 16 A / 250 V |
| Contact material | AgNi |
| Memory locations | 30 |
| Minimum interval | 1 min |
| Display | LCD |
| Dimensions | 45 × 17.5 × 55 mm |
| Enclosure protection | IP20 (DIN EN 60529) |
The SC 08 can switch up to 16 A at 250 V.
The device provides 30 memory locations.
Program security is unlimited thanks to E2‑PROM.
The power backup lasts approximately 4 years at 20 °C.
