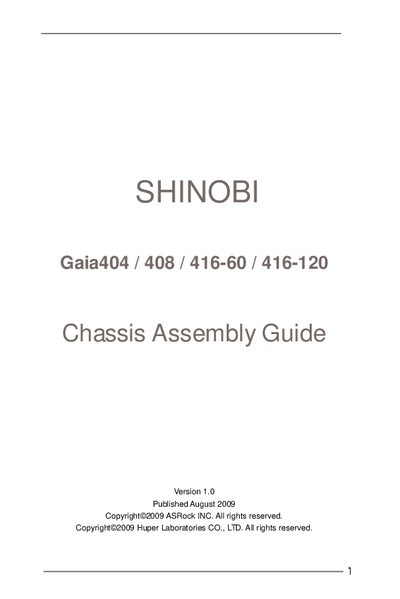

This document is a SHINOBI Gaia404 / 408 / 416-60 / 416-120 chassis assembly guide, which mainly introduces the assembly methods of the chassis
This Chassis Assembly Guide walks you through the complete hardware installation of the HuperLab Gaia404, Gaia408, Gaia416‑60 and Gaia416‑120 motherboards. It covers package contents, required tools, safety precautions, removal of chassis components, and final assembly steps.
The guide emphasizes proper ESD protection, recommended working environment (ambient temperature 0 °C to 40 °C), and lists the tools needed such as a Philips‑head screwdriver, magnetized screwdriver and forceps. Detailed illustrations show each removal and installation step, ensuring a reliable build.
| Operating temperature range | 0 °C to 40 °C |
|---|
Unplug the power cord, use a grounded wrist strap or touch a grounded object, handle components by the edges, and keep parts on an antistatic pad.
The environment should have ambient temperatures between 0 °C and 40 °C and provide a flat surface with enough space to move the system.
